XPOR System Modelling Tool

Now you've got your System Model sketch together, at least in outline, we now use XPOR System Modeller to build it into our website.  Watch this video to see XPOR System Modeller being used to create the Off Site Visit model.

Case StudyCase Study

Of the the various discrete things we identified, both the Contact and the Calendar are provided as a Core Component (for us to re-use).  But we still need to create our special Beneficial Object Types;

  • The Off Site Visit
  • The Venue
  • Transportation
  • The Risk Assessment
  • The Course

These Object Types were then built with XPOR System Modelller.

This includes how they are connected to each other (Associations) and how Users can create / edit new cases of each Object Type, using Forms (Interface).

Model Sketch

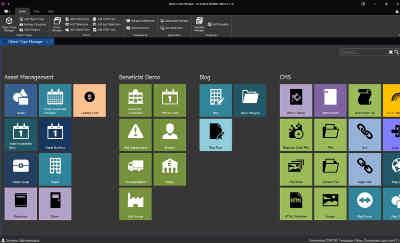

Mouse-over the picture for more detail. XPOR System Modeller with The Off Site visit objects completed and categorised under the Beneficial Demo category

XPOR System Modeller is also pre-loaded with 130 "core" object types.  They range from simple "Contacts", to "Blogs", "Products", "Payment Gateways", "Folders", "Web Pages".  Remember EVERYTHING is an object in XPOR!

We can now add our Off Site Visits into the XPOR admin system.
